PREMIUM SMF/AGM/EFB BATTERIES

The premium flooded SMF Battery range from Brava features the latest Lead Calcium alloy and Full Frame grid technology which improves electrical flow, resistance to corrosion and ensures a longer life cycle than conventional lead-acid batteries.

MSDS Certification
UN38.3 Certification
CQC
Iso 45001 Certification
ISO 14001 Certification
ISO 9001 Certification
12v230ah deep cycle agm batteries

DESCRIPTION

【Spill-Proof】
【Maintenance Free & Safe to Use】 Manufactured with thick AGM separators and advanced valve regulated technology, Brava Deep Cycle AGM Batteries save you from acid leakage and frequent maintenance. No acid leakage, no water refilling, and no harmful hydrogen gas.
【Outstanding Discharge Performance】 Proprietary quinary alloy plates and exclusively treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity. This means that Brava AGM batteries can power home appliances with high current ratings.
【Longer Shelf Life】 Upgrades to lithium seamlessly with the standard BCI group size but a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed.
【Better Performance at Extreme Temp】 The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from 5℉ (-15℃) to 122℉ (50℃).
【Power Most Appliances】 Featuring 1100A (5 seconds) max discharge current and consistent, stable discharge, the battery can power up most home appliances, such as a fridge, microwave, CPAP, coffee maker, laptop, and more.

【High Quality and High Reliability】

12v100ah deep cycle agm batteries

BP12-100

12V100AH Deep cycle agm battery
12v150ah deep cycle agm batteries

BP12-150

12V150AH Deep cycle agm battery
12v200ah deep-cycle battery

BP12-200

12V200AH Deep cycle agm battery
bp12-260 deep cycle agm battery

BP12-260

12V260AH Deep cycle agm battery

PREMIUM SMF BATTERIES

The premium flooded SMF Battery range from Brava features the latest Lead Calcium alloy and Full Frame grid technology which improves electrical flow, resistance to corrosion and ensures a longer life cycle than conventional lead-acid batteries.

Brava’s Sealed Maintenance Free (SMF) range features a variety of high-quality batteries whose construction differs from most other conventional batteries in several strategic ways:

The premium SMF Battery range is made with either proven wrought-lead calcium alloy grids or Full Frame grids*. These designs allow for stronger resistance to

corrosion and overcharging while also giving them a longer shelf life. Other conventional batteries use cast antimony grids which make the battery more susceptible to corrosion and water loss. Brava SMF Batteries are built with a flatbottomed, polypropylene rib case which provides improved vibration resistance and stronger durability. They also incorporate a patented Liquid Gas Separator which prevents electrolyte losses by collecting the liquid and returning it to the reservoir. While some other batteries use removable covers, the Brava SMF Battery incorporates sealed covers with built-in flame arresters for better resistance to acid loss, electrolyte contamination and explosions from external sparks.

SMF Battery Benefits

  • Brava Full Frame Technology stamped positive grids*
  • Patented high-density active material on plates
  • Built in ‘State of Charge’ hydrometer
  • Exclusive patented liquid & gas separators to prevent fluid loss
  • Flame arrestor ‘Safety System’ on vents
  • Low-resistance micro-porous envelope separators
  • Centre-cast on plate strap connectors
Model Type AH (20HR) RC (MIN) CCA L W TH Cell Layout Terminal Hold Down
S42B19L JIS 35 58 340 187 127 227 0 SMALL/JIS B0
S42B19LS JIS 35 58 340 187 127 227 0 STD/SAE B0
S42B19R JIS 35 58 340 187 127 227 1 SMALL/JIS B0
S42B19RS JIS 35 58 340 187 127 227 1 STD/SAE B0
22NF-330D 22NF 40 60 330 238 134 204 3 MULTI/DF B9
22NF-330LS 22NF 40 60 330 238 134 204 0 STD/SAE B9
S54516 DIN 45 75 400 207 174 174 0 STD/SAE B3
S55B24L JIS 45 80 430 237 128 225 0 SMALL/JIS B0
S55B24LS JIS 45 80 430 237 128 225 0 STD/SAE B0
S55B24R JIS 45 80 430 237 128 225 1 SMALL/JIS B0
S55B24RS JIS 45 80 430 237 128 225 1 STD/SAE B0
S50D20L JIS 50 85 400 206 172 222 0 STD/SAE B7
S50D20R JIS 50 85 400 206 172 222 1 STD/SAE B7
S55066 DIN 50 86 415 206 174 188 0 STD/SAE B3
S55458 DIN 54 90 500 242 174 174 1 STD/SAE B3
22F520SMF BCI 54 95 520 240 172 209 0 STD/SAE B9
22F520SMFDF BCI 54 95 520 240 172 209 0 MULTI/DF B9
22FR520SMF BCI 54 95 520 240 172 209 1 STD/SAE B9
AU22520SMFDF BCI 54 95 520 240 172 209 0 MULTI/DF B7
AU22R520SMF BCI 54 95 520 240 172 209 1 STD/SAE B0
S85B60L JIS 55 90 550 229 172 206 0 STD/SAE B1
S85B60R JIS 55 90 550 229 172 206 1 STD/SAE B1
22F600SMF BCI 58 95 600 240 172 209 0 STD/SAE B9
22FR600SMF BCI 58 95 600 240 172 209 1 STD/SAE B9
AU22R600SMF BCI 58 95 600 240 172 209 1 STD/SAE B0
S75-6MF BCI 58 100 650 237 178 184 1 SIDE B7
S55D23L JIS 60 100 500 229 172 225 0 STD/SAE B7
S55D23R JIS 60 100 500 229 172 225 1 STD/SAE B7
S56030 DIN 60 100 520 241 174 188 0 STD/SAE B3
S58-6MF BCI 60 100 530 241 183 175 1 STD/SAE B8
S58R-6MF BCI 60 100 530 241 183 175 0 STD/SAE B8
S56220 DIN 62 100 540 242 174 174 0 STD/SAE B3
22F680SMF BCI 62 105 680 240 172 209 0 STD/SAE B9
22FR680SMF BCI 62 105 680 240 172 209 1 STD/SAE B9
S56318 DIN 63 110 550 277 174 174 0 STD/SAE B3
S70D23L JIS 65 110 550 229 172 225 0 STD/SAE B7
S70D23R JIS 65 110 550 229 172 225 1 STD/SAE B7
S56838 DIN 68 110 600 277 174 188 0 STD/SAE B3
S56840 DIN 68 110 600 277 174 188 1 STD/SAE B3
S78-6MF BCI 68 120 770 268 178 205 1 SIDE B7
S78DT-6MF BCI 68 120 770 268 178 205 1 SIDE B7
S57013 DIN 70 110 770 277 174 188 1 STD/SAE B3
S57210 DIN 72 120 630 277 174 174 0 STD/SAE B3
S57220 DIN 72 120 680 277 174 188 0 STD/SAE B3
S80D26L JIS 75 140 600 260 172 225 0 STD/SAE B1
S80D26R JIS 75 140 600 260 172 225 1 STD/SAE B1
S75D31L JIS 75 140 620 305 172 225 0 STD/SAE B7
S75D31R JIS 75 140 620 305 172 225 1 STD/SAE B7
S65-7MF BCI 80 130 730 292 189 191 1 STD/SAE B1
S58014 DIN 80 135 730 313 174 174 0 STD/SAE B3
S58515 DIN 85 165 780 352 174 174 0 STD/SAE B3
S95D31LHD JIS 90 160 750 305 172 222 0 STD/SAE B7
S95D31RHD JIS 90 160 750 305 172 222 1 STD/SAE B7
S59095 DIN 90 160 912 314 174 188 1 STD/SAE B3
S59096 DIN 90 160 912 314 174 188 0 STD/SAE B3
S59227 DIN 92 170 700 352 174 188 0 STD/SAE B3
S59228 DIN 92 170 700 352 174 188 1 STD/SAE B3
S31-1000MF BCI-HD 100 160 1000 330 173 239 3 STUD B0
S31-1001MF BCI-HD 100 160 1000 330 173 239 3 STD/SAE B0
S1151 BCI-HD 100 180 750 330 172 240 3 STD/SAE B0
S1111H BCI-HD 100 180 830 330 172 240 3 STD/SAE B0
S1110H BCI-HD 100 180 830 330 172 240 3 STUD B0
S31-900MF BCI-HD 100 180 900 330 172 240 3 STUD B0
S31-901MF BCI-HD 100 180 900 330 172 240 3 STD/SAE B0
S60038 DIN 100 180 800 352 174 188 0 STD/SAE B3
S61101 DIN 110 190 950 394 175 190 0 STD/SAE B3
S68032 DIN 180 370 1100 513 222 220 5 STD/SAE B3

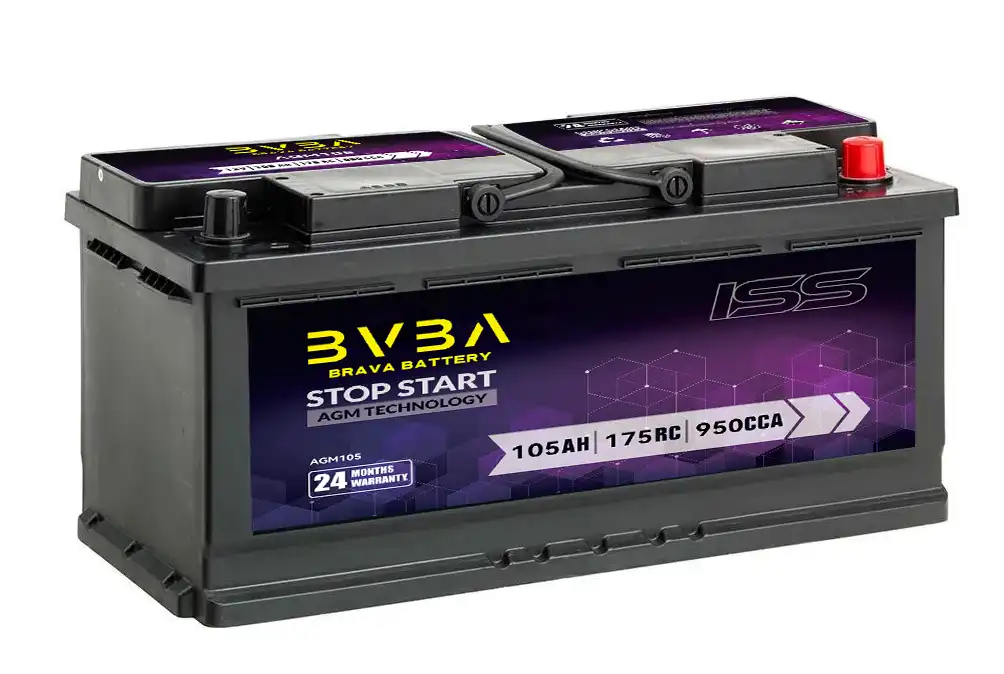

PREMIUM AGM & EFB BATTERIES

AGM & EFB batteries are specifically designed for use in Start-Stop systems. They feature industry leading Full Frame grid technology that ensures superior performance, emission reduction & maximum fuel saving.

Evolved from the proven Sealed Maintenance Free range, Brava’s Absorbed Glass Matt (AGM) and Enhanced Flooded Batteries (EFB) are designed and manufactured to perform under the toughest conditions.

Today, vehicles demand more of batteries than just starting power. Over the last 20 years the requirement on a vehicle’s electrical system has increased dramatically. Many vehicles now have Stop/Start technology and dozens of power hungry on-board electrical modules that require an advanced vehicle charging system and more importantly a battery capable of handling this increased load when the vehicle’s engine is not running. In addition they must also deliver the necessary starting capacity to start the vehicle in a fraction of a second when the brake is released or the accelerator depressed.

AGM & EFB Battery Benefits

  • Full Frame Grid Technology Increased cyclic ability
  • Up to 2x the service life*
  • Significant life improvement in all conventional vehicles (retrofit)
  • Improved rapid charge acceptance
  • High-density optimised paste mix
Model Type AH (20HR) RC (MIN) CCA L W TH Cell Layout Terminal Hold Down
S34B20LAGM JIS-AGM 33 57 340 195 126 224 0 SMALL/JIS B0
S34B20RAGM JIS-AGM 33 57 340 195 126 224 1 SMALL/JIS B0
S46B24LAGM JIS-AGM 42 75 410 236 126 224 0 SMALL/JIS B0
S46B24RAGM JIS-AGM 42 75 410 236 126 224 1 SMALL/JIS B0
S55090AGM DIN-AGM 50 80 520 206 174 189 0 STD/SAE B3
S56090AGM DIN-AGM 60 100 680 241 174 189 0 STD/SAE B3
S57090AGM DIN-AGM 70 120 760 277 174 189 0 STD/SAE B3
S58090AGM DIN-AGM 80 140 800 314 174 189 0 STD/SAE B3
S59590AGM DIN-AGM 95 160 900 352 174 189 0 STD/SAE B3
S60595AGM DIN-AGM 105 190 950 394 174 174 0 STD/SAE B3
SM42B20LEFB JIS-EFB 43 63 400 196 128 225 0 SMALL/JIS B0
SM42B20REFB JIS-EFB 43 63 400 196 128 225 1 SMALL/JIS B0
SN55B24LEFB JIS-EFB 58 92 500 238 128 225 0 SMALL/JIS B0
SN55B24LSEFB JIS-EFB 58 92 500 238 128 225 0 STD/SAE B0
S56030EFB DIN-EFB 60 100 560 242 175 190 0 STD/SAE B3
S57038EFB DIN-EFB 70 120 720 278 175 190 0 STD/SAE B3
SQ85D23LEFB JIS-EFB 75 125 660 229 172 222 0 STD/SAE B7
SQ85D23REFB JIS-EFB 75 125 660 229 172 222 1 STD/SAE B7
SS95D26LEFB JIS-EFB 80 150 720 259 172 222 0 STD/SAE B7
SS95D26REFB JIS-EFB 80 150 720 259 172 222 1 STD/SAE B7
ST110D31LEFB JIS-EFB 90 170 820 305 172 222 0 STD/SAE B7
ST110D31REFB JIS-EFB 90 170 820 305 172 222 1 STD/SAE B7

9 Typical Applications

  • Stand-alone solar systems
  • Solar lighting systems
  • Telecommunication equipment
  • Electronic instruments
  • Fire alarm
  • Security devices
  • UPS power supply
  • Emergency lighting
  • Various industrial applications
deep cycle agm battery for Marine

In Series or Parallel

Connect batteries in series or parallel
deep cycle agm battery for outdoor

In Series or Parallel

Connect batteries in series or parallel
solar battery in cabin

M8 Terminal

High Reliability
deep cycle agm battery for truck

High Performance

Reliable & High Performance
deep cycle agm battery for RV

In Series or Parallel

Connect batteries in series or parallel
deep cycle agm battery for Camping

M8 Terminal

High Reliability

FAQ

1. How long do deep cycle batteries last?

The average lifespan of a deep cycle battery is about 3-6 years. However, the lifespan of a deep cycle battery will vary based on several factors such as the type of battery, how it is used and maintained, and the climate in which it is kept.

2. Can I connect batteries in series and in parallel?


Yes, you can. The maximum number that can be connected in parallel is 4. In series, there are no limitations.


3. Can I connect a 100 Ah battery to a 200 Ah battery?


No, you can’t. All the batteries you connect together should be the same capacity (Ah), the same voltage (V), and most importantly, the same battery type (AGM). And it would be better if they come from the same brand.


4. What’s the best way to place and store this battery?


It’s a sealed battery and we recommend placing the battery upright. It is allowed to be placed and installed on its side only if there are special reasons for doing so. DO NOT place the battery upside down. You should store it in a dry and cool (5°F~104°F / -15°C~40°C) place. Make sure that it is 100% charged before storing it, and recharge after three months.


5. Can I discharge the battery to 0% and then recharge it again?


To avoid cycle life shortening, it is recommended not to discharge the battery below 50%. And when not in use, we recommend charging it 100% before storing it and recharging it after three months.


6. I will go to live in my forest cabin during the winter holiday. So I want to know that can this battery be used at freezing temperatures?


The discharge working temperature range is 5°F~122°F (-15°C~50°C) and the charge temperature range is 5°F~104°F (-15°C~40°C). Using this battery at a lower or higher temperature than the range will shorten the battery’s lifespan. We recommend checking the specific daily temperature of the place you will be going before using this AGM battery.


7. When using a charge controller, which battery type should I set?


You should choose the SLD battery settings.


8. What factors affect the lifespan of a deep cycle battery?

There are many factors that affect the lifespan of a battery. The most important factors are:

• AGM technology(Price)
• The temperature
• Frequency of Cycle
