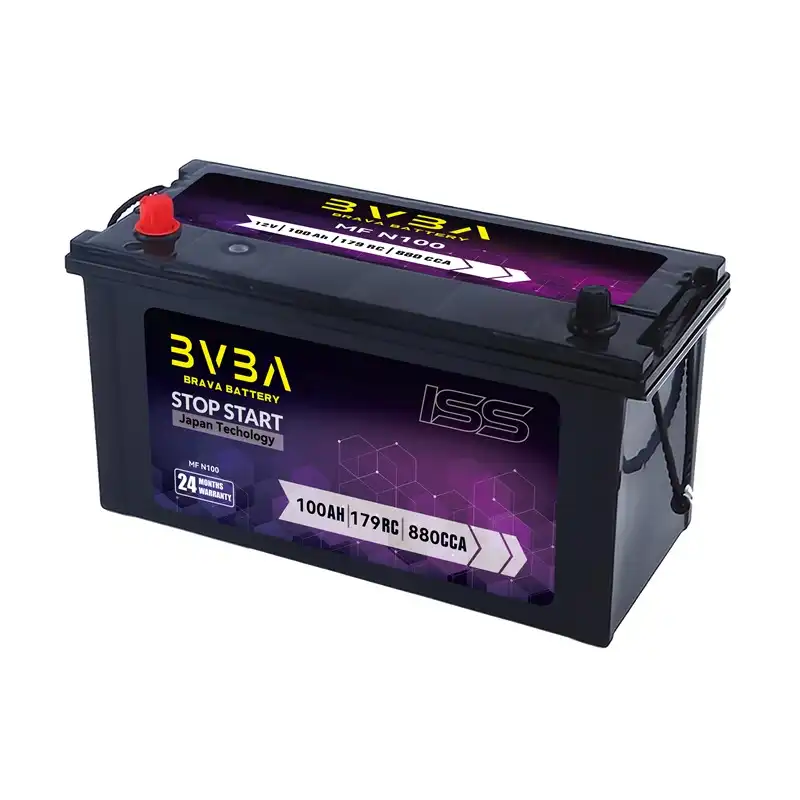

N100 (95E41R) 12V100AH JIS SMF Truck Battery

Product Description

Model: N100
BRAVA N100 (95E41R, 6-QW-100R-B) JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 100Ah
Size : 409*170*209*233mm
Weight : 26.3kg
Terminal : 1

Tags:

Model

N100 (95E41R)

Nominal Voltage

12V

Nominal Capacity(20HR)

100Ah

Dimension

Length

409±2mm(16.10inches)

Width

170±2mm(6.69inches)

Container Height

209±2mm(8.23inches)

Total Height(with Terminal)

233±2mm(9.17inches)

Weight With Acid

Approx 26.3Kg(58.0lbs)

Acid

1.280±0.015g/cm (25ºC)

Standard Terminal

Cell layout

Hold-Down

Case

Black-Material (PP)

Cover

Black-Material (PP)

Handle

Black-Material (PP)

Rated Capacity

@20 hour rate(1.8A)

100Ah

Reserve Capacity (RC)

[email protected]

179min

Cold Cranking Amps(CCA)

@0 ºF (-18 ºC)

750A(JIS)

Terminal Type

Positive

Negative

19.5

17.9

Wet Starter SMF Truck Battery JIS Standard Series

Group No.	Old Type	Type	Volt.	C20	C5	RC	CCA(JIS)	Overall Dimensions(mm)	Cell	Terminal	Hold Down	Handles	Wet Weight
(V)	(Ah)	(Ah)	(Min)	(-18℃)	L	W	H	TH	Layout	(Kg)
E41	N100L	95E41L	12	100	80	179	750	409	170	209	233	0	1	B0	TS8	26.3
N100	95E41R	12	100	80	179	750	409	170	209	233	1	1	B0	TS8	26.3
N100ZL	105E41L	12	105	83	190	780	409	170	209	233	0	1	B0	TS8	27
N100Z	105E41R	12	105	83	190	780	409	170	209	233	1	1	B0	TS8	27
N100ZL	115E41L	12	110	88	201	820	409	170	209	233	0	1	B0	TS8	27.5
N100Z	115E41R	12	110	88	201	820	409	170	209	233	1	1	B0	TS8	27.5
NX200-10L	130E41L	12	116	92	215	850	409	170	209	233	0	1	B0	TS8	28.2
NX200-10	130E41R	12	116	92	215	850	409	170	209	233	1	1	B0	TS8	28.2

Group
No.

Old
Type

Type

Volt.

C20

CCA(JIS)

Overall Dimensions(mm)

Cell

Terminal

Hold
Down

Handles

Wet
Weight

(V)

(Ah)

(Min)

(-18℃)

Layout

(Kg)

E41

N100L

95E41L

100

179

750

409

170

209

233

TS8

26.3

N100

95E41R

100

179

750

409

170

209

233

TS8

26.3

N100ZL

105E41L

105

190

780

409

170

209

233

TS8

N100Z

105E41R

105

190

780

409

170

209

233

TS8

N100ZL

115E41L

110

201

820

409

170

209

233

TS8

27.5

N100Z

115E41R

110

201

820

409

170

209

233

TS8

27.5

NX200-10L

130E41L

116

215

850

409

170

209

233

TS8

28.2

NX200-10

130E41R

116

215

850

409

170

209

233

TS8

28.2

FAQ

1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.

4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.
