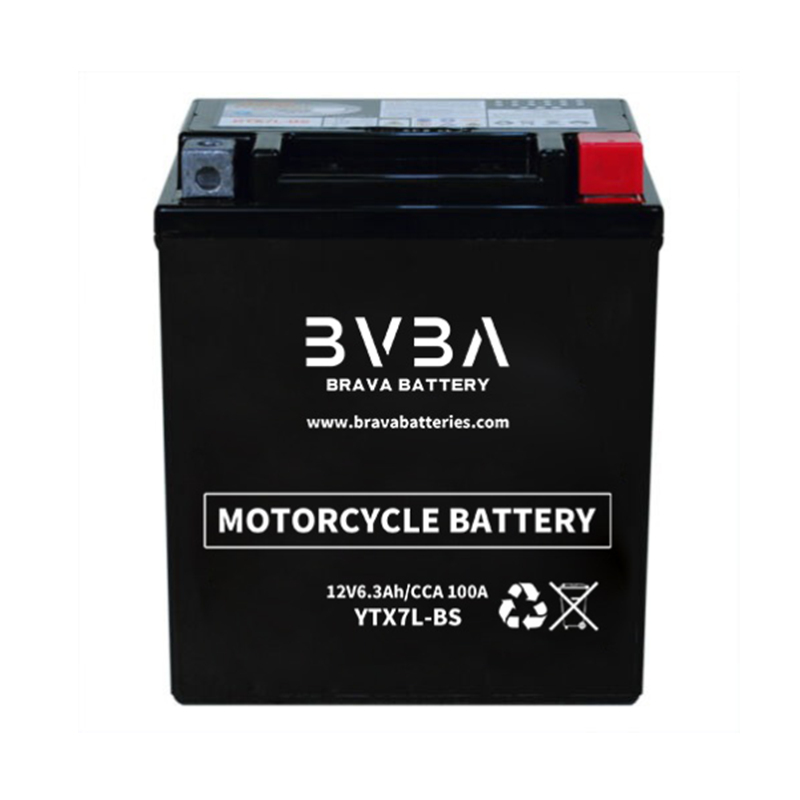

YTX7L-BS ATV battery

YTX7L-BS Motorcycle battery General Features & benefits.

Maintenance-free design
Sealing structure of ABS materials
Low self-discharge
High CCA and good starting performance: Up to 30% more CCA than standard AGM batteries despite being lighter & more compact.

Tags:

Share This Page

YTX7L-BS Battery Product Application

Motorcycle
ATV
Boats & RVs
Scooter
Winches
replacement YTX7L-BS, GTX7L-BS, UTX7L, PTX7L-BS, PTX7LBS-FS, CYTX7L-BS, MBTX7U and WP7L-BS
AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.

Standards & Certifications

Compliance with IEC 60896 standards, EU Battery Directive
UL, CE Certified
Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

YTX7L-BS ATV Battery Specifications

Model	YTX7L-BS
Rated Voltage	12V
Weight	Approx 2.50kg
Capacity	6.3Ah
Terminal	QM5
Container Material	Black PP
CCA	100A
Internal Resistance(25ºC)	Approx 16mΩ
Operating Temp. Range	Discharge	-40～60ºC (-4～140ºF)
	Charge	-20～50ºC (14～122ºF)
	Storage	-40～60ºC (-4～140ºF)
Nominal Operating Temp.Range	25±5ºC (77±5ºF )
Constant-Current Charge	Charging cerreng:0.1C,when charging voitage up to 14.4V, continue to charge 4h
Floating Charge	Charging current less than 0.25C Voltage: 13.60V~ 13.80V @ 25℃ (77ºF)
Effect of temp. to Capacity	40ºC (104ºF)	103%
	25ºC ( 77ºF)	100%
	0ºC ( 32ºF)	86%
Self Discharge	Motorcycle series batteries may be stored for up to 6 months at 25ºC(77ºF) and then a freshening charge is required. For higher temperatures the time interval will be shorter

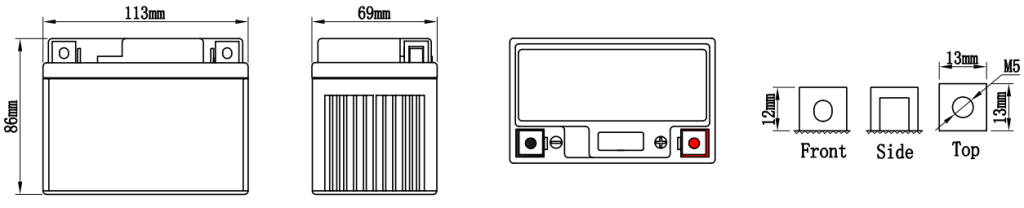

YTX7L-BS Battery Structure Diagram

YTX7L-BS ATV Battery Charging/Discharge Curve

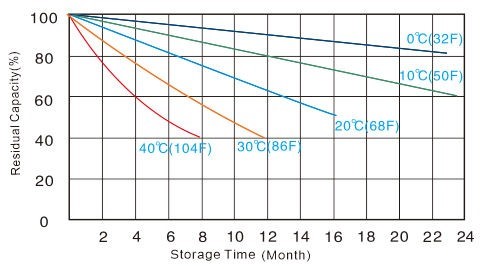

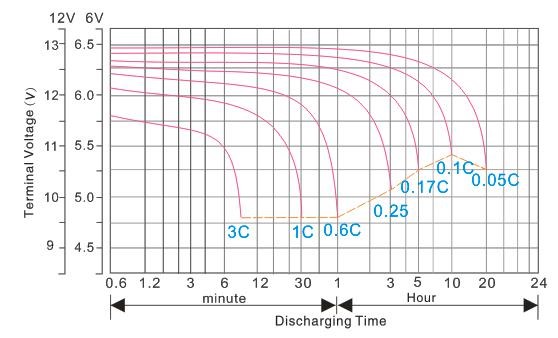

Descharge Characteristics		Self Discharge Characteristic

Advantages of motorcycle battery series

Heat Sealed Case To Cover
Protects against leakage and corrosion and provides for extra stength and durability.

Special Active Material
Compounded to withstand vibration, it prolongs the battery life in storage and provides reliable starting power when needed

Unique Expanded Plate Grid Design
Increased number of plates for maximum starting power and to withstand severe vibration resistance

AGM Separators
Absorbed Glass Matt separators absorb the electrolyte and make the battery spill-proof. The valve regulated design eliminates water loss and the need for refilling

Polypropylene (PP) Cover & Container
Protects against fuel and oil and designed to withstand vibration and impact under extreme conditions
